S5720-28X-PWR-SI-AC
-
Model:
Huawei S5720-28X-PWR-SI Bundle -
Detail:
Huawei S5720-28X-PWR-SI Bundle(24 Ethernet 10/100/1000 PoE+ ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 500W AC power) -
Price:
$1000.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview (S5720-28X-PWR-SI-AC)
Huawei S5720-28X-PWR-SI-AC is a Layer 3 Ethernet switch. It supports twenty-four Ethernet 10/100/1,000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP, and 4 x 10G SFP+. It offers double hot-swappable AC/DC power supplies, one AC power module is configured by default.
Quick Specs

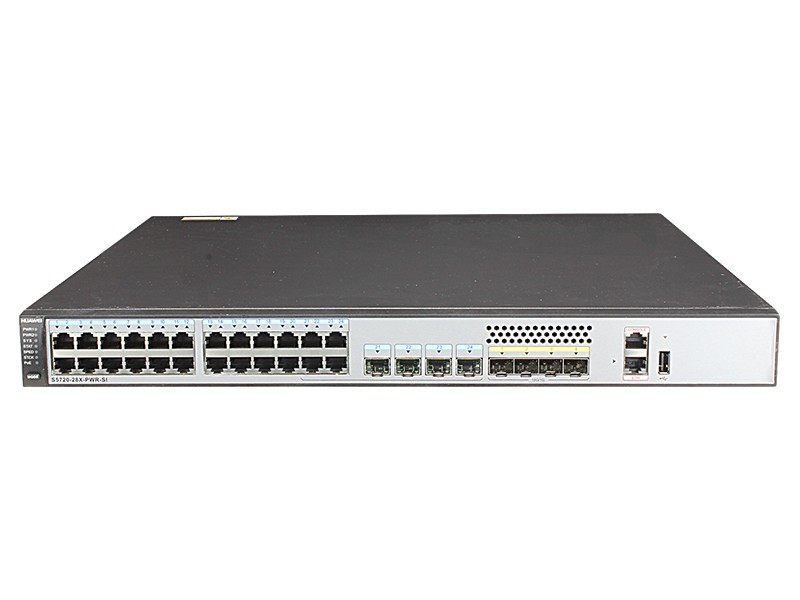

Figure 1 shows the appearance of Huawei S5720-28X-PWR-SI-AC switch.
Table 1 shows the Quick Specs.
|
Product Code |
S5720-28X-PWR-SI-AC |
|
Downlink Ports |
24 × Ethernet 10/100/1000 PoE+ ports, 4 of which are dual-purpose 10/100/1000 or SFP |
|
Uplink Interfaces |
4 × 10 Gig SFP+ |
|
Forwarding Performance |
96 Mpps |
|
Switching Capacity |
336 Gbit/s |
|
Stack |
Supported |
|
Stack Ports |
GE electrical ports and 10GE SFP+ optical ports except combo ports on the front panel |
|
Memory (RAM) |
512 MB |
|
Flash |
240 MB |
|
Dimensions (W x D x H) |
44.2 cm x 42 cm x 4.44 cm |
|
Weight (Kg) |
9.3 Kg |
Product Details
Figure 2 shows the front panel of Huawei S5720-28X-PWR-SI-AC switch.
Note:
|
① |
20 × PoE+ 10/100/1000BASE-T ports |
④ |
One console port |
|
② |
Four combo ports (10/100/1000BASE-T (PoE+) + 100/1000BASE-X) |
⑤ |
ETH management port |
|
③ |
4 × 10GE SFP+ ports |
⑥ |
One USB port |
Figure 3 shows the back panel of Huawei S5720-28X-PWR-SI-AC switch.
Note:
|
① |
Ground screw |
|
② |
Power module slot 2 |
|
③ |
Power module slot 1 |
· Double hot swappable AC/DC power supplies, one 500W AC or 650W DC power module is configured by default.
