Huawei ATN 910 AND1EF8T - 8 Channels Fast Ethernet Electric Interface Board
-
Model:
Huawei ATN Series -
Detail:
-
Price:
$1500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Share:
Overview

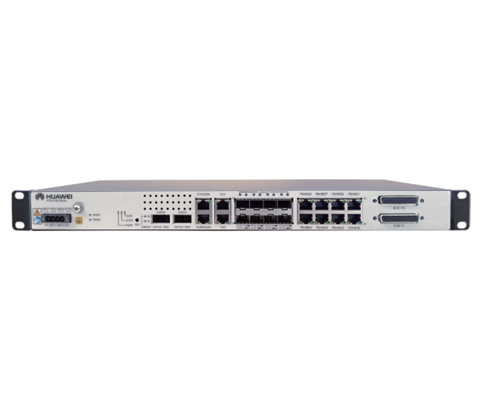

Huawei ATN 910 AND1EF8T - 8 Channels Fast Ethernet Electric Interface Board
Indicator
The following indicators are present on the front panel of the AND1EF8T:
- STAT indicator, red, green, or orange, which indicates the working status
- LINK indicator, green, which indicates the connection status of the port
- ACT indicator, yellow, which indicates the data transceiving status of the port
Functions and features of the AND1EF8T
|
Function and Feature |
Description |
|
|---|---|---|
|
Basic function |
Provides eight FE electrical interfaces. |
|
|
Supports the hot swappable function. |
||
| Detects the temperature and voltage of the board. | ||
| Interface function | Supports signals at 10 Mbit/s and 100 Mbit/s. | |
| Supports inloops and outloops. | ||
| Supports Layer 2 and Layer 3 working modes. | ||
| Clock | Supports physical-layer clock synchronization (synchronous Ethernet). | |
|
Supports IEEE 1588v2 and IEEE 1588 ACR. |
||
