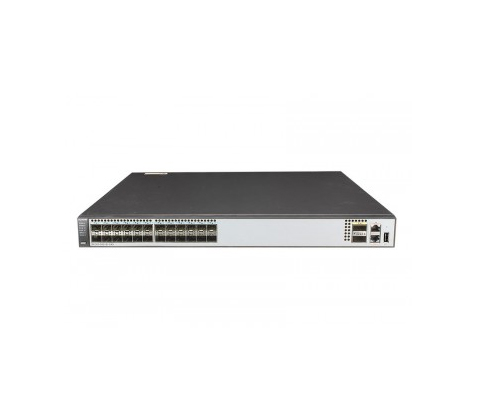

Huawei S6720-30C-EI-24S-AC

  • Model:

    Huawei S6700 Series Switches
  • Detail:

  • Price:

    $3300.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview



Huawei S6720-30C-EI-24S-AC

Appearance and Structure


1 Twenty-four 10GE SFP+ ports
Applicable modules and cables:

GE optical module

GE-CWDM optical module

GE-DWDM optical module

GE copper module

10GE SFP+ optical module (OSXD22N00 not supported)

10GE-CWDM optical module

1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables

3 m and 10 m SFP+ AOC cables

2 Two 40GE QSFP+ ports
Applicable modules and cables:

QSFP+ optical module

1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables

1 m, 3 m, and 5 m QSFP+ to 4*SFP+ high-speed copper cables

10 m QSFP+ to QSFP+ AOC cable (applicable in V200R009C00 and later versions)

10 m QSFP+ to 4*SFP+ AOC cable (applicable in V200R009C00 and later versions)

NOTE:
A 40GE QSFP+ optical port can be split into four 10GE ports.
3 ETH management port 4 One console port
5 One USB port 6 Ground screw
NOTE:
It is used with a ground cable.
7 ESN label
NOTE:

You can draw it out to view the ESN and MAC address of the switch.

8 Rear card slot
NOTE:

Card supported: ES5D21Q04Q01 (4-Port 40 Gig QSFP+ Rear Interface Card, Used in S6720-EI Series)

9 Fan slot
NOTE:

Applicable fan module: FAN-060B-B Fan Module

10 Power module slot 2
NOTE:
Applicable power modules:

350 W DC power module

600 W AC power module

11 Power module slot 1
NOTE:
Applicable power modules:

350 W DC power module

600 W AC power module

- -

Technical Specifications

Reviews

(Total 0 User Comment Num)

  • No comment

Write a review here:

Your Name*Anonymous user

Item

Description

Memory (RAM)

2 GB

Flash

240 MB

Mean time between failures (MTBF)

80.60 years when no interface card is configured; 70.79 years when a 4-port 40GE interface card is configured

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

NA

Power supply surge protection

  • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode

Dimensions (W x D x H)

442.0 mm x 420.0 mm x 44.4 mm (17.4 in. x 16.5 in. x 1.74 in.)

Weight

  • Empty: ≤ 8 kg (17.64 lb)
  • Fully loaded: ≤ 12 kg (26.46 lb)

Stack ports

  • Any 10GE SFP+ ports (a maximum of 16 physical ports)
  • Any 40GE QSFP+ ports (a maximum of 6 physical ports)

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-38.4 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

233.7 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5096 ft.)

NOTE:
When the altitude is 1800-5000 m (5096-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 72.1 dBA

Relative humidity

5% to 95%, noncondensing

Operating altitude

0-5000 m (0-16404 ft.)
