huawei EA5801-GP08

  • Model:

  • Detail:

  • Price:

    Request For Quotation

  • Condition:

    Brand New Sealed
  • Availability:

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview

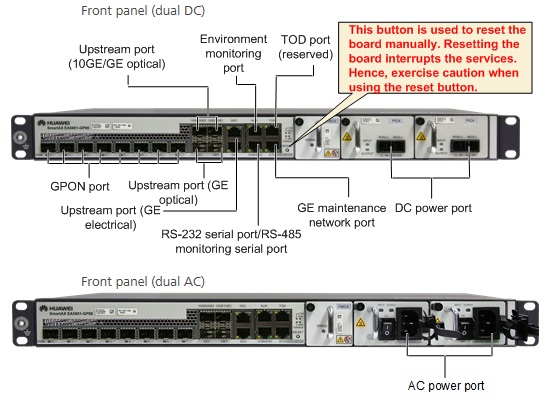

The EA5801-GP08 integrated control and service module integrates the H921MPCAE control module, H921NXHCE upstream module, H921GPHDE service module, and H921CIUA interface module. These modules cannot be removed or replaced.

Dimensions and weight of the EA5801-GP08

Item

Specification

Dimensions (H x W x D, excluding mounting ears)

43.6 mm x 442.0 mm x 222.3 mm

Dimensions (H x W x D, including mounting ears of IEC standard)

43.6 mm x 482.6 mm x 222.3 mm

Dimensions (H x W x D, including mounting ears of ETSI standard)

43.6 mm x 535.0 mm x 222.3 mm

Maximum fully-loaded weight (DC)

4.2 kg

Maximum fully-loaded weight (AC)

4.6 kg
