Huawei MA5683T MA5603T

  • Model:

  • Detail:

  • Price:

    Request For Quotation

  • Condition:

    Brand New Sealed
  • Availability:

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview

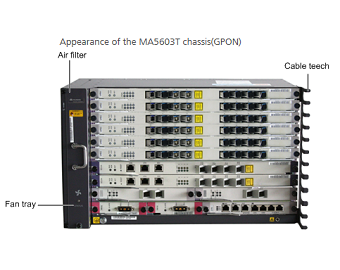

 Dimensions and weight of the MA5603T

Item

Specification

Dimensions (W x D x H, excluding mounting brackets)

442.00 mm x 283.20 mm x 263.90 mm

Dimensions (W x D x H, including mounting brackets of 19-inch standard)

482.60 mm x 283.20 mm x 263.90 mm

Dimensions (W x D x H, including mounting brackets of ETSI standard)

535.00 mm x 283.20 mm x 263.90 mm

Weight (empty chassis)

7.00 kg

Power Supply

Power specifications of the MA5603T

Item

Specification

Power supply mode

DC (dual power for backup)

Rated voltage

-48 V / -60 V

Working voltage range

-38.4 V to -72 V

Maximum input current

20 A
