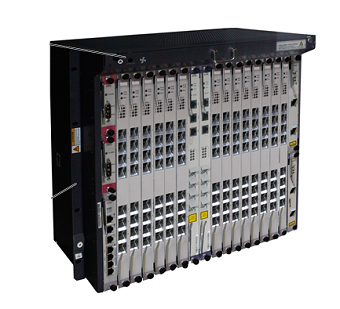

Huawei MA5680T/MA5600T IEC subrack
-
Model:
-
Detail:
-
Price:
Request For Quotation
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
Overview
Specifications of the IEC service subrack
Item |
Specification |
---|---|
Dimensions (W x D x H, including mounting ears) |
482.60 mm × 275.80 mm × 441.70 mm |
Dimensions (W x D x H, excluding mounting ears) |
442.00 mm × 275.80 mm × 441.70 mm |
Maximum weight at full configuration (including mounting ears) |
30.54 kg |
Power Supply
Power specifications of the IEC service subrack
Item |
Specification |
---|---|
Power supply mode |
DC (dual power for backup) |
Rated voltage |
-48 V / -60 V |
Working voltage range |
-38.4 V to -72 V |
Maximum input current |
40 A |
