Huawei CloudEngine CE8800 Series Data Center Switches
-
Model:
Huawei Data Center Switches -
Detail:
Huawei CloudEngine 8800 series (CE8800) switches are 100G Ethernet switches designed for data centers and high-end campus networks. The switches provide high-performance, high-density 100 GE/40 GE/25 GE/10 GE ports, and low latency. Using the Huawei VRP8 software platform, CE8800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE8800 switches can work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric for cloud-computing data centers. -
Price:
$10.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894

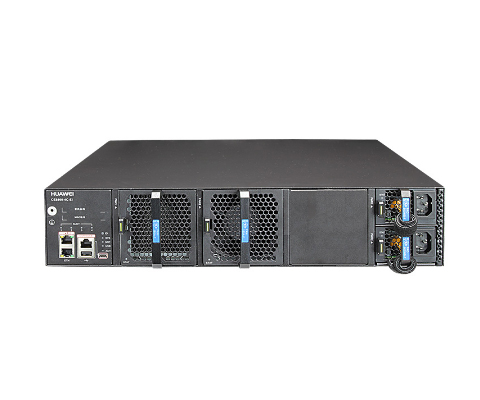

Huawei CloudEngine CE8800 Series Data Center Switches
Huawei CloudEngine 8800 series (CE8800) switches are 100G Ethernet switches designed for data centers and high-end campus networks. The switches provide high-performance, high-density 100 GE/40 GE/25 GE/10 GE ports, and low latency. Using the Huawei VRP8 software platform, CE8800 switches provide extensive data center service features and high stacking capability. In addition, the airflow direction (front-to-back or back-to-front) can be changed. CE8800 switches can work with CE12800/CE8800/CE6800/CE5800 switches to build an elastic, virtualized, high-quality fabric for cloud-computing data centers.
CE8800 switches can function as core or aggregation switches on data center networks to help enterprises and carriers build a scalable data center network platform in the cloud computing era. They can also be used as aggregation or core switches for enterprise campus networks
CE8860-4C-EI |
2U high, supporting four flexible cards of half the standard width |
CE88-D24S2CQ |
24 x 10 GE (SFP+) or 25 GE (SFP28) and 2 x 100 GE (QSFP28) cards |
 CE88-D24T2CQ |
24 x 10 GE (BASE-T) and 2 x 100 GE (QSFP28) cards |
 CE88-D8CQ |
8 x 100 GE (QSFP28) cards |
 CE88-D16Q |
16 x 40 GE (QSFP+) cards |
| Item | CE8860-4C-EI |
|---|---|
| Ports |
4 slots, different cards can be flexibly used in combinations to achieve a maximum of: 32 x 100 GE QSFP28 or 64 x 40 GE QSFP+ or 128 x 25 GE SFP28 or 128 x 10 GE SFP+ ports |
| Switching Capacity | 6.4 Tbit/s |
| Forwarding Performance | 3,200 Mpps |
| Dimensions (W x D x H) | 442 mm x 600 mm x 88.1 mm |
| Weight (fully loaded) | 21.2 kg (46.7 lb) |
| Maximum Power Consumption | 750W |
