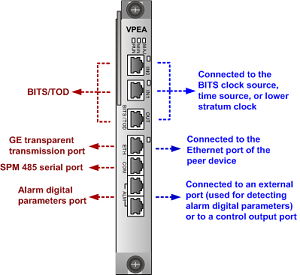

Huawei VPEA for The H806VPEA board is a vectoring centralized processing board, and it works with the vectoring-supporti

MA5603T

Control board

SCUB

SCUN

SCUH

SCUK

Supports SLV only.

S300/T300/T500

Vectoring can be implemented on VDSL2 lines only when their connected terminals support vectoring.

Vectoring-supported Huawei terminals include the HG612, HG622, HG630, and HG658. For details about the version of these terminals in supporting vectoring, see the product documents of these terminals.

Backplane

H802MABO

None

VP board

H806VPEA

H806VPEF

Installed in slot 12 fixedly.

VDSL2 board

• H80BVCMM
• H80DCCPE
• H80DVCPD
• H80DVCPE
• H80DVCPM
• H80DSDMM

• The H80BVCMM board is a 48-channel VDSL2 over POTS access service board.
• The H80DCCPE board is a 64-channel VDSL2&POTS Combo Board with built-in splitter.
• The H80DVCPD board is a 64-channel VDSL2 over POTS access service board.
• The H80DVCPE board is a 64-channel VDSL2 over POTS access service board, equipped with a built-in splitter.
• The H80DVCPM board is a 64-channel VDSL2 over POTS access service board.
• H80DSDMM: 48-channel SuperVector access service board.

MA5600T

Control board

SCUB

SCUN

SCUH

SCUK

Supports SLV only.

N/A

Backplane

H802MABC

H803MABC

None

VP board

H806VPGA

Consistently installed in slot 8 and slot 11.

VDSL2 board

• H80BVCMM
• H80DCCPE
• H80DVCPD
• H80DVCPE
• H80DVCPM

• The H80BVCMM board is a 48-channel VDSL2 over POTS access service board.
• The H80DCCPE board is a 64-channel VDSL2&POTS Combo Board with built-in splitter.
• The H80DVCPD board is a 64-channel VDSL2 over POTS access service board.
• The H80DVCPE board is a 64-channel VDSL2 over POTS access service board, equipped with a built-in splitter.
• The H80DVCPM board is a 64-channel VDSL2 over POTS access service board.

MA5623AR

N/A

N/A

The MA5623AR extended subrack can be considered as the extension service board for the main subrack. The main subrack manages the MA5623AR extended subrack in the same way as it manages its service boards. The MA5623AR extended subrack provides the same functions as the VDSL2 board of the main subrack.

N/A

MA5616

Control board

H831CCUE

Supports SLV and NLV.

S200/S100

Daughter board

UP2CA/UP2AA

None

Backplane

H831MABB

None

VP board

H836VPBA

H836VPDA

H836VPME

• H836VPBA/H836VPME: A daughter board for SLV; attached to the power board.
• H836VPDA: A daughter board for NLV; attached to the power board. It only can be used together with H83BVCMM, H83BVCLE or H83BVCLF board for vectoring.

VDSL2 board

H83BVCMM

H83DVCMM

H83BVCLE

H83BVCLF

H83DCCME

H83DSDMM

• H83BVCMM/H83DVCMM: 48-channel VDSL2 access service board.
• H83BVCLE/H83BVCLF: 32-channel VDSL2 access service board.
• H83DCCME: 48-channel VDSL2&POTS combo board.
• H83DSDMM: 48-channel SuperVector access service board.

Power board

H831PAVDA

H832PDVAA

H832PDNAA

H832PDMSB

• H831PAVDA: An AC power board for SLV.
• H832PDVAA: A DC power board for SLV.
• H832PDNAA: A DC power board for NLV.
• H832PDMSB: A DC power board for SLV.

MA5622A

Control board

HS22CCVB

Supports SLV only.

N/A

MA5623A

Control board

HS22CCVW

Supports SLV only.

N/A

MA5611S

Integrated device

N/A

Supports SLV only.

N/A

MA5811S

Integrated device

N/A

Supports G.fast Vectoring.

N/A
