S1720-20GFR-4TP

  • Model:

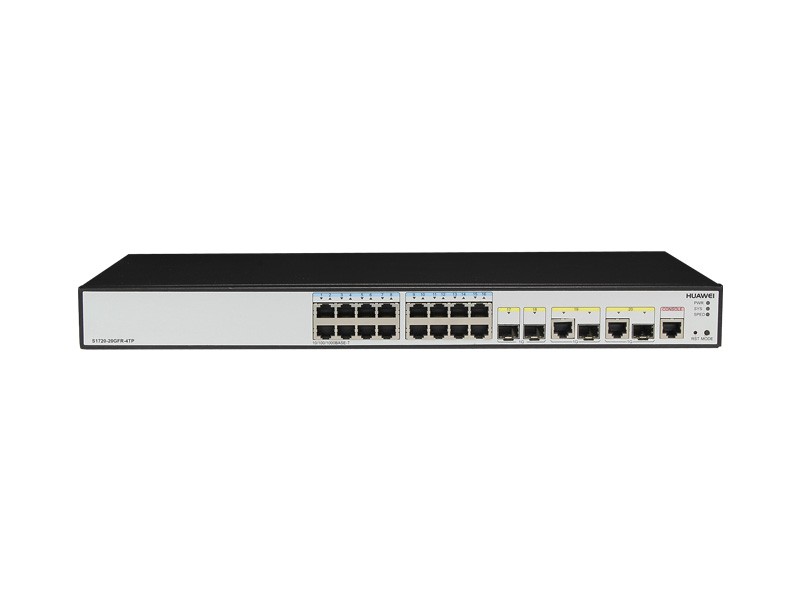

    S1720-20GFR-4TP Huawei S1700 Series Switch
  • Detail:

    16 Gigabit Ethernet ports ,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V
  • Price:

    $252.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
16 Gigabit Ethernet ports ,2 Gig SFP and 2 dual-purpose 10/100/1000 or SFP,AC 110/220V



Product overview

The S1700 series enterprise switches (S1700s) are next-generation energy-saving Ethernet access switches. The S1700 uses high-performance hardware, which offers a wide array of features to help customers build secure, reliable, high-performance networks. The S1700 is easy to install and maintain, and is ideal for small-size and medium-size enterprises, Internet cafes, hotels, and schools.

The S1700 consists of unmanaged switches, a web-managed switch and Web/SNMP-based switches:

  •   • Unmanaged switches include the S1700-24-AC, S1700-52R-2T2P-AC, S1724G, S1700-24GR and S1700-16G
  •   • The web-managed switches include the S1728GWR-4P, S1720-10GW-2P, S1720-10GW-PWR-2P, S1720-28GWR-4P, S1720-28GWR-4X, S1720-28GWR-PWR-4P, S1720-28GWR-PWR-4X, S1720-52GWR-4P, S1720-52GWR-4X, S1720-52GWR-PWR-4P, S1720-52GWR-PWR-4X, S1720-28GWR-PWR-4TP
  •   • Web/SNMP-based switches include the S1700-28FR-2T2P-AC, S1700-28GFR-4P-AC, S1700-52FR-2T2P-AC, S1700-52GFR-4P-AC, S1720-20GFR-4TP and S1720-28GFR-4TP, S1720-10GW-2P-E, S1720-10GW-PWR-2P-E, S1720-28GWR-4P-E, S1720-28GWR-4X-E, S1720-28GWR-PWR-4P-E, S1720-28GWR-PWR-4TP-E, S1720-28GWR-PWR-4X-E, S1720-52GWR-4P-E, S1720-52GWR-4X-E, S1720-52GWR-PWR-4P-E, S1720-52GWR-PWR-4X-E



Product specifications

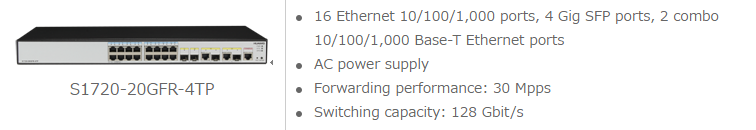

Model S1720-20GFR-4TP
Downlink Ports 16 Ethernet 10/100/1,000  ports
Uplink Ports 4 Gig SFP ports, 2 combo 10/100/1,000 Base-T Ethernet ports
MAC Address Table 16K MAC
Dimensions in mm (W x D x H) 442 x 220 x 43.6
Input Voltage

 100V to 240V; 50 Hz/60 Hz

EEE Supported
Power Consumption <20.7W
Operating Temperature 0m to 1,800m: 0°C to 45°C
1,800 to 4,000m: Decreases 1°C for every 200m increase in altitude
Humidity (non-condensing) 5% to 95%
Heat Dissipation

Fan-free natural heat dissipation









Product characteristics
