ZTE M721 ZTE ZXMP M721 Metro Edge OTN Equipment DWDM CWDM N3M2SEOPA N3M2NCP N3M3NCP N3M1SSDMT N3M1SSDMR N3M1SOP2 N3M1SOP

 ZXMP M721 can access any-rate-service (2Mbit/s – 100Gbit/s), and supports intelligent cognition, the port supports automatic identification of type of services.

• SDH service, E1,STM-1/4/16/64/256, OC-3/12/48/192, POS.
• Ethernet service, FE, GE, 10GE,40GE,100GE.
• Storage and video streaming service, 1G/2G/4G/8G/10G FC, ESCON, FICON, DVB-ASI, SD-SDI/HD-SDI/SDI-3G,InfiniBand 2.5G,InfiniBand 5G,InfiniBand 10G.
• OTN, OTU1, OTU2, OTU2e, OTU1f,OTU3,OTU4.

Other service,CPRI option2,CPRI option3,CPRI option4,CPRI option5,CPRI option6,CPRI option7.

4. Universal switching platform

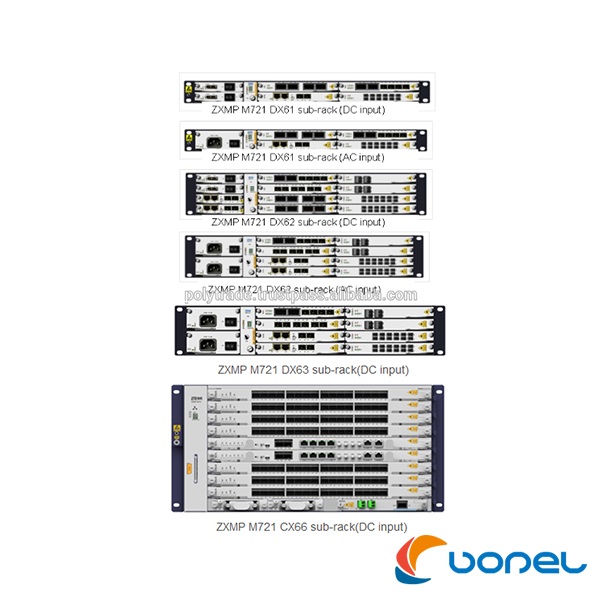

ZXMP M721 adapts the packet OTN architecture.The brand-new All in One design can support OTN/Packet/TDM universal switching.It can implement access,swtiching and transmission of various service in a unified way.It greatly relieves IP bandwidth pressure and performs intelligent grooming of IP traffic.Total switching capacity of switching sub-rack(CX66) is 840Gbit/s at most.

5. L2 Function
ZXMP M721 supports L2 function,8×FE/GE or 4×FE/GE+4×10GE-10GE.

6. APO Function
ZXMP M721 supports APO function based on the OCH layer an the OMS section.

7. Flexible service grooming
M721 supports DSS (Distributed Service Switch platform) based on ODU0/ODU1/ODUflex.
Services aggregation: 4-10×Any-rate-service-OTU1, 4-22×Any-rate-service-OTU2.
10G-any -OTU2, support single channel, double channels, integrated protection OTU cards.

8. Synchronization
ZXMP M721 supports out-band / in-band 1588V2 transmission and synchronous Ethernet transmission.

9. Reliable protection scheme
ZXMP M721 supports control card/power card 1+1 backup and OMS/OCH 1+1,VC-12 1+1 and ODUk 1+1 protection. All the protection switching time of OMS 1+1/OCH 1+1,VC-12 1+1 and ODUk 1+1 are less than 50ms in compliance with ITU-T standards.

10. Optional OSC/ESC
ZXMP M721 supports OSC (Optical Supervisory Channel) and ESC (Electrical Supervisory Channel) providing flexibility for deployment.

ZTE ZXMP M721 Board list:

Wall-mount Bracket
DX62-DCB
DX62-ACB
DX61-DC/ACB
Rack(T-2200x600x300mm,Type IV)
Rack(T-2000x600x300mm,Type IV)
Rack(T-2200x600x300mm,Type III)
Rack(T-2000x600x300mm,Type III)
DX62-DCF
DX62-DCE
DX62-DCC
DX62-ACF
DX62-ACE
DX62-ACC
DX62-DTC
DX62-ATC
DX62-DTF
DX62-ATF
DX62-DTE
DX62-ATE
DX62-DTB
DX62-ATB
DX61-DC/ACF
DX61-DC/ACE
DX61-DC/ACC
TS2C License
TD2C License
OTM License
N3M1TS2CP license
N3M1MQA2 license
N3M1MQA1 license
N3M1MJA license
N3M2SEOPA(C,27dB,17dBm)
N3M2SEOPA(C,22dB,17dBm)
N3M2SEOPA(C,17dB,17dBm)
N3M2SEOBA(C,22dB,20dBm)
N3M2SEOBA(C,17dB,17dBm)
N3M2NCP(II)
N3M2NCP(I)
N3M3NCP(I)
N3M3NCP(II)
N3M2FAN
N3M3FAN
N3M1SSDMT
N3M1SSDMR
N3M1SOP2(1550nm)
N3M1SOP2(1310nm)
N3M1SOP1(1550nm)
N3M1SOP1(1310nm)
N3M1SOGMD(TFF,C)
N3M1BITSB
N3M1SOAD4(195.7~196.0THz,100GHz,S,II)
N3M1SOAD4(195.3~195.6THz,100GHz,S,II)
N3M1SOAD4(194.9~195.2THz,100GHz,S,II)
N3M1SOAD4(194.5~194.8THz,100GHz,S,II)
N3M1SOAD4(194.1~194.4THz,100GHz,S,II)
N3M1SOAD4(193.7~194.0THz,100GHz,S,II)
N3M1SOAD4(193.3~193.6THz,100GHz,S,II)
N3M1SOAD4(192.9~193.2THz,100GHz,S,II)
N3M1SOAD4(192.5~192.8THz,100GHz,S,II)
N3M1SOAD4(192.1~192.4THz,100GHz,S,II)
N3M1SOAD2D(192.1THz-192.2THz,S)
N3M1SOAD2D(192.3THz-192.4THz,S)
N3M1SOAD2D(192.5THz-192.6THz,S)
N3M1SOAD2D(192.7THz-192.8THz,S)
N3M3OMU40(AWG,100GHz,C)
N3M3ODU40(AWG,100GHz,C)
N3M1PW-DC
N3M1PW-AC
N3M1OSC SFP 80KM
N3M1OSC SFP 140KM
N3M1OSC SFP 120KM
N3M1FAN
N3M1EI
N3M2DCM Tray
N3M1DCM Tray
N3M2DCM20-2C(A,LC)
N3M2DCM40-2C(A,LC)
N3M2DCM10-2C(A,LC)
N3M2DCM60-2C(A,LC)
N3M2DCM80-2C(A,LC)
N3M2DCM100-2C(A,LC)
N3M2DCM120-2C(A,LC)
N3M2DCM20-5C(A,LC)
N3M2DCM40-5C(A,LC)
N3M2DCM60-5C(A,LC)
N3M2DCM80-5C(A,LC)
N3M2DCM100-5C(A,LC)
N3M2DCM120-5C(A,LC)
N3M1Blank Panel(Type IV)
N3M1Blank Panel(Type III)
DX62 Dust Proof
N3M2NCP(II)
N3M2NCP(I)
N3M3NCP(I)
N3M3NCP(II)
N3M2FAN
N3M1SOP2(1550nm)
N3M1SOP2(1310nm)
N3M1SOP1(1550nm)
N3M1SOP1(1310nm)
N3M1SFP for OSC(CWDM,single fiber bi-direction,1451nm)
N3M1SFP for OSC(CWDM,single fiber bi-direction,1310nm)
N3M1SFP for OSC(CWDM,1311nm,80km)
N3M1SCOMDS(II)
N3M1SCOMD4-5U
N3M1SCOMD4-1US(II)
N3M1SCOMD4-5US(II)
N3M1PW-DC
N3M1PW-AC
N3M1FAN
N3M1EI
N3M1Blank Panel(Type IV)
N3M1Blank Panel(Type III)
DX62 Dust Proof
N3M1XFP module(DWDM,800ps,PIN)
N3M1XFP module(CWDM,1400ps,APD)
"N3M1XFP module(10GBASE-ZR/10GBASE-
ZW,80km)"
"N3M1XFP module(10GBASE-SR/10GBASE-
SW/1200-MX-SN-I,300m)"
"N3M1XFP module(10GBASE-LR/10GBASE-
LW/1200-SM-LL-L/I64.1,10km)"
N3M1XFP module(10GBASE-ER/10GBASE-EW/S64.2b,40km)
N3M1TS2CP(T&R,N-XFP,N-DWDM XFP,Fbc3)
N3M1TS2CGA(Double G,N-DWDM XFP,Fbc3)
N3M1TS2CGA(Double G,N-CWDM XFP,Fbc3)
N3M1TS2C(T&R,N-XFP,N-DWDM XFP,Fbc3)
N3M1TD2C(T&R,N-XFP,N-DWDM XFP,Fbc3)
N3M1MQM1(N-SFP,N-DWDM SFP,Fbc3)
N3M1MJM(N-SFP)
N3M1XFP module(FC 800,10km)
N3M1XFP module(DWDM,800ps,PIN,Tunable-C96)
N3M1SFP-S4.1
N3M1SFP-ZX
N3M1SFP-SX-D
N3M1SFP-S16.1
N3M1SFP-LX
N3M1SFP-LH2
N3M1SFP-LH1
N3M1SFP-L16.2
N3M1SFP-L16.1
N3M1SFP-I16
N3M1SFP(400-SM-LL-I)
N3M1SFP(400-M5-SN-I/400-M6-SN-I)
N3M1SFP(1000BASE-T)
N3M1SFP(S1.1,155M,15km,1310nm)
N3M1SFP(L1.1,155M,40km,1310nm)
N3M1SFP(L4.1,622M,40km,1310nm)
N3M1SFP(1000BASE-SX/100-M6-SN-I/200-M6-SN-I)
N3M1SFP module(DWDM,192.1THz,3600ps,APD)
N3M1SFP module(DWDM,192.2THz,3600ps,APD)
N3M1SFP module(DWDM,192.3THz,3600ps,APD)
N3M1SFP module(DWDM,192.4THz,3600ps,APD)
N3M1SFP module(DWDM,192.5THz,3600ps,APD)
N3M1SFP module(DWDM,192.6THz,3600ps,APD)
N3M1SFP module(DWDM,192.7THz,3600ps,APD)
N3M1SFP module(DWDM,192.8THz,3600ps,APD)
N3M1SFP module(CWDM,18-Ch,80km,APD)
N3M2MQA2(N-SFP,N-DWDM XFP,Fbc3)
N3M2MQA1(N-SFP,N-DWDM SFP,Fb3)
N3M2MJA(N-SFP)
N3M1MOM2B(N-SFP,N-DWDM XFP,Fbc3)
N3M2MQA2(N-SFP,N-CWDM XFP,Fbc3)
N3M2MQA1(N-SFP,N-CWDM SFP,Fb3)
N3M1MOM2B(N-SFP,N-CWDM XFP,Fbc3)
N3M1SFP+(6G,2km,1310nm)
N3M1SFP(S4.1,622M,15km,1310nm)
N3M1SFP+(10G,1.4km,1310nm)
N3M1MQA2(N-SFP,N-DWDM XFP,Fbc3)
N3M1MQA1(N-SFP,N-DWDM SFP,Fb3)
N3M1MJA(N-SFP)
