ZTE ZXR10 F821 ETC8B MSVG GPON F820/F821/ETC8B/8E1/T1/CES

 ZTE MDU, ZXA10 F820,F821,F822, GPON ONU used in an FTTB/FTTO scenario

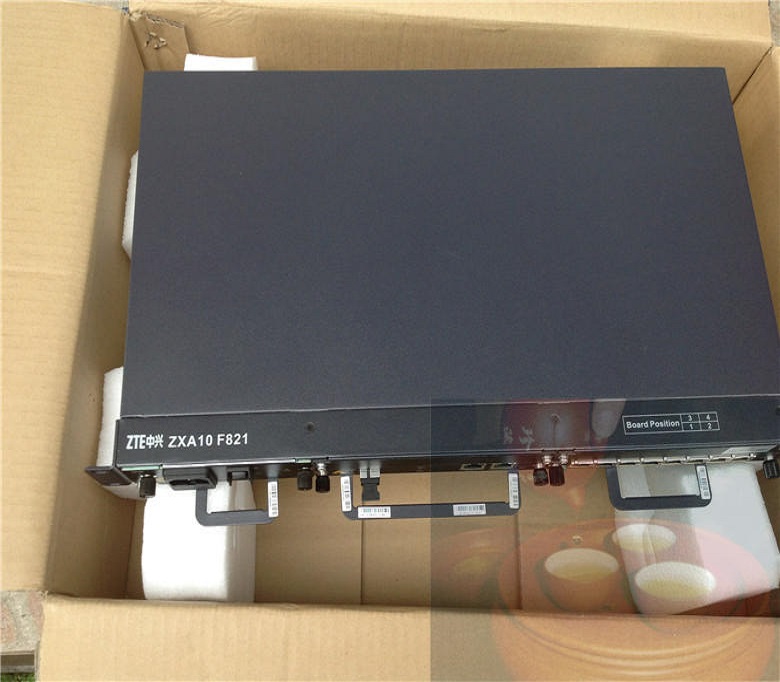

ZXA10 F821 is a GPON Optical Network Unit used in an FTTB/FTTO scenario. ZXA10 F821 supports VoIP, data and TDM services access. It builds a multi-tenant network center with computer technology and broadband optical network access technology, which connects various business appliances and equipments into the network to share Internet/voice connections so as to provide users with rich, diversified, personalized, convenient, comfortable, safe and effective services.

ZXA10 F821 provides 1/2 GPON interfaces to connect OLT with an ODN. It offers a new choice for operators to deliver FTTB/FTTO access.

TE Multi-Service Access Solution Copyright ZTE. All rights reserved
Interface Function Physical Performance
Power consumption: 26W (24FE+24POTS)
Dimensions: 255mm(D) x 482.6 mm(W) x 43.6 mm(H)
Working temperature: -30°C ~ 55°C

Working humidity: 5% ~ 95%
Weight: 4.5Kg
Power supply: -48V DC or 110V/220 V AC
Mounting mode: Rack/Cabinet/Desktop/Wall mounted
Backup battery: 6AH/10AH (Optional)
Transmission Rate
Transmission Distance
Transmission Wavelength
Service Function
Optical port (line terminal):
1/2 * GPON interface (SC/UPC)

User network interface:
Three slots mix plug in line card
1* 10/100/1000Base-T in main control

card
8/16 /24* POTS (VoIP) per line card
8 * E1/T1 per line card
8 * 10/100Base-T per line card

Line terminal: 2.488Gbps downstream and
1.244Gbps upstream
 User side interface: 10/100/1000Mbps or
10/100Mbps auto-negotiation
Link distance: 0 ~ 20km max.
Receiving: 1,490 nm
Transmitting: 1,310 nm
Receiving Sensitivity
Transmitting Optical Power
Overload Optical Power
 -8dBm
Service: VoIP, Internet, IPTV,TDM E1/T1
Support G.703/G.704, TDM CES mode
Type C/D protection
Flexible plug-in card design
802.1Q, 802.1P, 802.1ad and QoS policy
IGMP snooping and controllable multicast
Loop back detection
Auto event alarm
Security management
Remote management
Dying Gasp
Optical power detection
SIP/H.248/ MGCP
G.711a/G.711u/G.723.1/G.729a/b, T.30/T.38
Up to 8T-CONTs and 256 GEM Ports
1dBm~+5dBm
 Better than -28dBm
