ZTE ZXA10 F829 Stable CBU for Mobile Backhaul ZTE F829-16 GPON EPON

  • Model:

    ZTE ZXA10 F829
  • Detail:

    Stable CBU for Mobile Backhaul
  • Price:


  • Condition:

    Brand New Sealed
  • Availability:


  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Stable CBU for Mobile Backhaul

 The ZTE LAN MDU family supports HSI, VoIP, video, clock synchronization, serial ports, etc

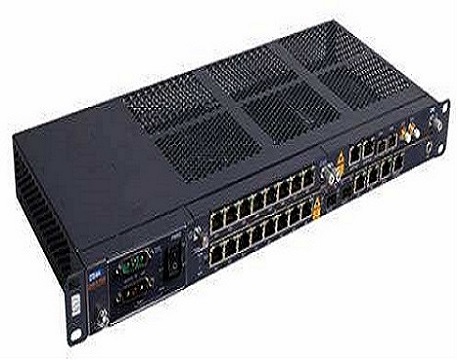

The ZXA10 F829 is a semi-fixed clip-type Cell Backhaul Unit (CBU) that ZTE launched to implement mobile backhaul and to fulfill the needs of government/enterprise customers. It supports EPON/GPON/10G EPON/P2P technologies; provides Ethernet, E1/T1, 1PPS+TOD, and IEEE 1588V2 interfaces; and offers excellent clock synchronization. All these features enable the F829 to be widely used in FTTX scenarios that bear operators’ mobile backhaul services. The F829 can also be widely used for TDM services for government/enterprise customers.


Advanced System Architecture to Suit Diverse Networking Needs

  • A Unified Platform Design for Sustainable Competitiveness. The uplink subcard of the F829 is independent and can be flexible  configured with EPON/GPON/10G EPON or GE functions.
  • Semi-fixed Clip-Type Design for Multi-service Bearing. Its main control card supports 2GE+8FE interfaces, and its single service slot supports 8 E1/T1, 8FE service cards. All these provide enough interface resources.
  • Unique Dual–Power-Supply Design. It supports AC, DC, and AC+DC power supply and power backup to enable prolonged operation.


Superior Performance for Mobile Backhaul Service

  • Excellent Time and Frequency Synchronization Capabilities. The F829provides two 1PPS+TOD ports and two 1PPS ports. It also supports the IEEE 1588v2 and synchronous ethernet protocols. With all these features, the F829 can fulfill the requirements of all kinds of mobile base stations.


High Reliability to Protect Customer Experience

  • Real-time Environment Monitoring and Periodic Self-check of Key Components.The F829 performsreal-time monitoring of temperature, power and access control. It also supports alerts for major failures and intelligent reset mechanisms.
  • All-Fiber Protection and Fast Fault Location. The F829supports Type C protection with a switching time of less than 50ms. It also supports Optical Link Supervision (OLS) and quick location of optical path faults.


Green Design

  • The Average Power Consumption per Port is Less than EU Standards. Withlowpower consumption the equipment lowers OpEx.
  • Non-fan Design. Natural air cooling makes the equipment suitable for working in quiet environments such as offices and residential areas. RoHS-compliant material minimizes environmental pollution.

Perfect Solution to Achieve Fixed–Mobile Convergence

  • Fixed-Moble Convergence. ZTE launched the premium Mobile Backhaul over PON solution based on its years of technology accumulation and commercial practice. The solution fully integrates fixed and mobile network resources.
  • Success Cases. ZTE has already cooperated with PT.Telekom, China Mobile, China Telecom, and China Unicom to provide access for GSM BST, CDMA2000, and WCDMA eNODEB . The outstanding performance of the solution has won high praise of the customers.
