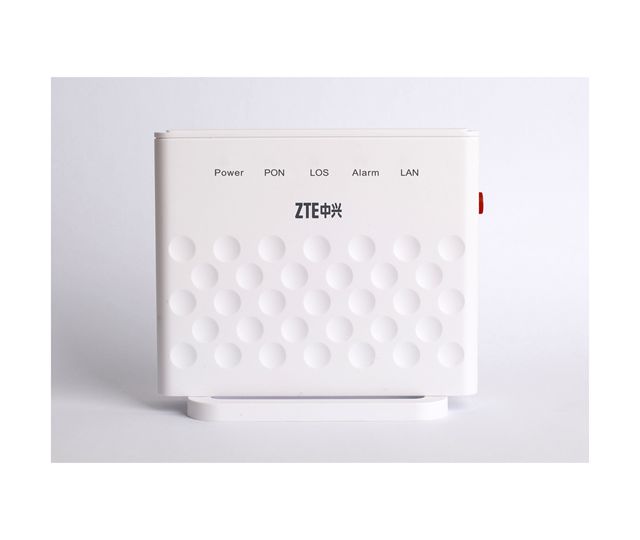

ZTE ZXHN F601 PON ONT
-
Model:
ZTE ZXHN F601 PON ONT -
Detail:
ZTE F601 v4.0 ONU ONT GPON EPON -
Price:
$500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
ZXHN F601 is a GPON Optical Network Terminal designed for FTTH scenario. It provides high-
performance forwarding capabilities to ensure excellent experience with Internet and HD
video services. It has a small, smart appearance and green, energy-saving advantage.
GPON Interface
Optical port: 1 x GPON interface (SC/PC or SC/APC)
Transmission Distance: 0 ~ 20km
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface
1 x10/100/1000Base-T
Half/full duplex; Auto MDI/MDIX; Auto negotiation
Optical Module
Wavelength:
Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
Physical Performance
Power consumption: <6W
Dimensions: 110mm(W) x 90mm(H) x 53mm(D)
Working temperature: 0oC ~ 40oC
Working humidity: 5% ~ 95%
Weight: about 190g
Power supply: 12V DC
Mounting mode: Desktop/Wall mounting
Main Function
Supported service: Internet, IPTV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 256
Multicast: IGMP v1/v2 Snooping
Multicast group per user port: 256
QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;
egress shaping
Management: local web management, OMCI
