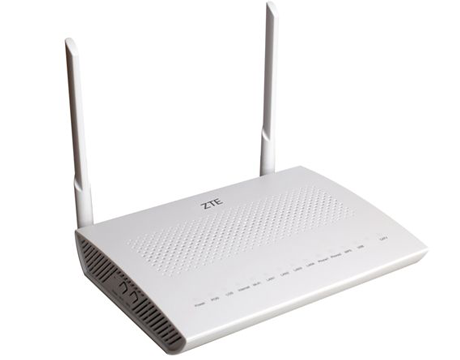

ZTE ZXHN F668 PON ONT
-
Model:
ZTE ZXHN F668 PON ONT -
Detail:
ZTE F668 GPON EPON ONT/ONU WiFi CATV ONU CATV ONT Triple Play ONU -
Price:
$500.00
- Free Technical Support
- Product Quality Protection
- On-time Shipment
- +86 755 8215 3862
- leo@uonel.com
- ywx39894
ZTE F668 ZTE ZXHN F668 GPON EPON ONT/ONU WiFi CATV ONU CATV ONT Triple Play ONU
GPON Interface
Optical port : 1 x GPON interface (SC/APC)
Transmission Distance: 0 ~ 20km
Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream
User Network Interface
4 x 10/100/1000Base-T: Half/full duplex; Auto MDI/MDIX; Auto negotiation
2 x POTS interfaces
1 x Wi-Fi interface: IEEE 802.11b/g/n @2.4G Hz
1 x RF coaxial connector for CATV
1 x USB host interface
Optical Module
Wavelength:
Receiving: 1480~1500 nm
Transmitting: 1290~1330 nm
Third party wavelength: 1550~1560 nm
Receiving Sensitivity: -28dBm
Transmitting Optical Power: 0.5~5dBm
Physical Performance
Power consumption: <10W
Dimensions: 220mm(W) x 34mm(H) x 187mm(D)
Working temperature: 0oC ~ 40oC
Working humidity: 5% ~ 95%
Weight: about 580g
Power supply: 12 V DC
Mounting mode: Desktop/Wall mounting
Main Function
Supported service: VoIP, Internet, IPTV, CATV
GPON: 8 T-CONTs, 32 GEM Ports
VLAN: 802.1Q, 802.1P, 802.1ad
MAC address table: 1k
L3 function: DHCP server/Client, DNS Client, NAT
IPv6: Dual Stack, DS-Lite
VoIP: SIP/H.248, G.711/G.729, T.30/T.38
Wi-Fi: 4 SSIDs, 2x2 MIMO, WPS
Wi-Fi authentication: Shared key, 128-bit WEP, WPA-PSK, WPA2-PSK, WPA-PSK + WPA2-PSK
Multicast: IGMP v1/v2 Snooping/Proxy, MLD v1 Snooping
Multicast group per user port: 256
QoS: service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/SP+WRR
Management: local web management, OMCI, TR069
