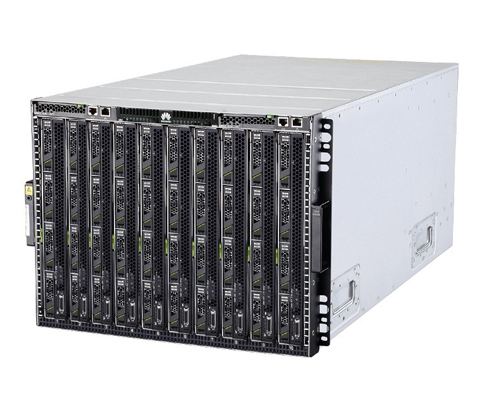

Huawei E6000H Blade Server Chassis

  • Model:

    E-Series Blade Server
  • Detail:

    As your IT traffic grows, you need a blade server platform that meets requirements for reliability, high performance, and supercomputing for low, mid-range and high-end services.
  • Price:

    $1000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
As your IT traffic grows, you need a blade server platform that meets requirements for reliability, high performance, and supercomputing for low, mid-range and high-end services.



Huawei E6000H Blade Server Chassis

As your IT traffic grows, you need a blade server platform that meets requirements for reliability, high performance, and supercomputing for low, mid-range and high-end services. Huawei E6000H Blade Server platform gives you what you need: flexible configurations and integrated subsystems for computing, switching, storage, I/O, and management, and energy-efficient 12V DC power.

Huawei E6000H platform also provides virtualization and high scalability; it’s optimized for large-scale, high-density IT usage for telecommunications, enterprises, Internet applications, and scientific computing.

Specification



Item

Huawei E6000H Blade Server Chassis

Form Factor

8U blade server chassis

Server Blades

10 slots for Huawei BH series server blades

Switch Modules

NX910 GE pass through module
NX120 4G FC switch module
NX220 8G FC switch module
NX226 8G FC pass through module
NX112 10 GE uplink switch module
NX113 10 GE uplink switch module
NX230 10 GE switch module

PSU

Up to 6 hot-swappable PSUs:
AC: 1,600W
-48V DC: 1,300W
*Redundancy: N+N or N+M
*Note: N+N redundancy is not supported on PSUs when the server is fully configured with BH640 V2 server blades.

Fan Modules

9 hot-swappable fan modules in N+1 redundancy mode

Management

2 management modules in 1+1 redundancy mode
Supported protocols: IPMI 2.0, SOL, SSL, and SSH
Supports CLI, IPMI tools, RMCP+, and Web for management

Power Supply

110V AC to 220V AC, or 48V DC

Operating Temperature

5°C to 35°C

Dimensions

Height: 353 mm (13.90 in.)
Width: 447 mm (17.60 in.)
Depth: 810 mm (31.89 in.)
