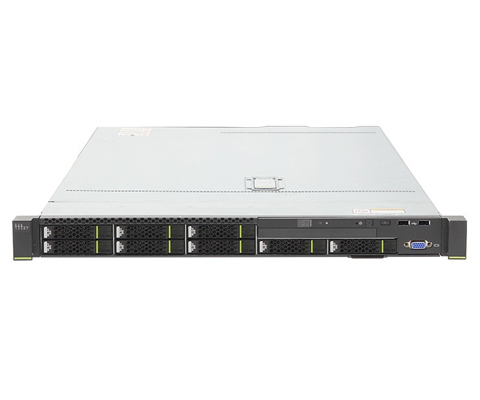

Huawei RH1288A V3 server with 1 or 2 Intel Xeon processors

  • Model:

    RH Series Rack Servers
  • Detail:

    Huawei RH1288 V2 rack server is designed for compute intensive and cloud applications. This high-performance 1U rack server supports 2*Intel Xeon E5-2600 V3 series processors, 16*DDR4 RDIMMs/LRDIMMS slots to support up to 1TB memory capacity, 8*2.5” SAS/SATA HDDs or SSDs or 4*3.5” SAS or SATA HDDSs.
  • Price:

    $3000.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei RH1288 V2 rack server is designed for compute intensive and cloud applications. This high-performance 1U rack server supports 2*Intel Xeon E5-2600 V3 series processors, 16*DDR4 RDIMMs/LRDIMMS slots to support up to 1TB memory capacity, 8*2.5” SAS/SATA HDDs or SSDs or 4*3.5” SAS or SATA HDDSs.



Huawei RH 1288A V3 rack server with 1 or 2 Intel Xeon processors

Huawei RH1288 V2 rack server is designed for compute intensive and cloud applications. This high-performance 1U rack server supports 2*Intel Xeon E5-2600 V3 series processors, 16*DDR4 RDIMMs/LRDIMMS slots to support up to 1TB memory capacity, 8*2.5” SAS/SATA HDDs or SSDs or 4*3.5” SAS or SATA HDDSs. This server supports two or four GE ports or two 10 GE ports without occupying any PCIe slots, improving network availability. Moreover, Dynamic energy-saving and power-capping technologies limit server power consumption to a preset threshold, improving overall energy efficiency.



Form factor

1U rack server

Processors

One or two Intel Xeon E5-2600 v3 series processors

Memory

16 DDRRDIMMs/LRDIMMs

Internal Storage

Hard disk configurations:
8 x 2.5-inch SAS/SATA HDDs or SSDs
 4 x 3.5-inch SAS or SATA HDDs

RAID Support

RAID 0, 1, 10, 5, 50, 6, or 60

 Optional supercapacitor
RAID state migration, configuration memory, self-diagnosis, and web-based remote configuration

LOM Network Ports

Two GE electrical ports, supporting NC-SI, WOL, and PXE
Four GE electrical ports, supporting NC-SI, WOL, and PXE
Two 10 GE optical ports, supporting NC-SI and PXE
Two 10 GE electrical ports, supporting NC-SI, WOL, and PXE

PCIe Expansion

Up to 3 PCIe slots

Fan Modules

Five hot-swappable fan modules in N+1 redundancy mode
Each fan module consists of two counter-rotating fans.

PSUs

2 hot-swappable PSUs in 1+1 redundancy mode

Management

Uses Huawei Hi1710 management chip and independent ports, supports standard management interfaces, such as SNMP and IPMI, and provides a GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring
Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft SystemCenter, and Nagios

Operating Temperature

5ºC to 35ºC (41ºF to 95ºF)
When RH1288 V3 operates at 45
ºC (113ºF), the server does not support PCIe SSDs, and the failure of one fan may cause CPU performance to deteriorate
