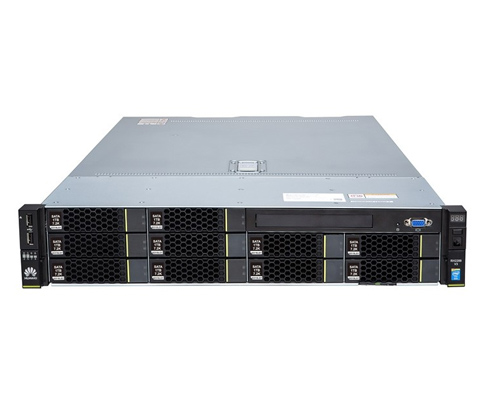

Huawei RH 2288H V3 2U rack server

  • Model:

    RH Series Rack Servers
  • Detail:

    Huawei new-generation RH2288H v3 rack server delivers high-performance, large storage capacity and scalability in 2U space.
  • Price:

    $100.00

  • Condition:

    Brand New Sealed
  • Availability:

    IN STOCK

  • Quantity:

  • Free Technical Support
  • Product Quality Protection
  • On-time Shipment
Overview
Huawei new-generation RH2288H v3 rack server delivers high-performance, large storage capacity and scalability in 2U space.



Huawei RH 2288H V3 2U rack server

Huawei new-generation RH2288H v3 rack server delivers high-performance, large storage capacity and scalability in 2U space. This server is ideal for Internet, big data, cloud computing, high-performance computing, telecom service and mission-critical applications. Huawei RH2288H V3 Rack Server supports two Intel Xeon E5-2600 V3 series processors, 24 DDR4 DIMMS, 9 PCIe slots and optional Huawei high-performance PCIe SSDs and dual-slot GPUs. With the Industry-leading RAID technologies and flexible storage expansion, Huawei RH2288H V3 Rack Server can supports from 8 to 28 hard disks and employs the latest 12Gbits/s SAS technology to support massive data transmission.



Specifications

RH2288H V3

Processors

One or two Intel Xeon E5-2600 v3 series processors

Memory

24 DDR4 RDIMMs/LRDIMMs

Internal Storage

Hard disk configurations:
8 x front 2.5-inch SAS/SATA HDDs or SSDs
10 x front 3.5-inch SATA HDDs
12 x front 3.5-inch SAS/SATA HDDs and 2 x rear hard disk modules
each module provides two 2.5-inch SAS/SATA HDDs or SSDs, or two 3.5-inch SAS/SATA HDDs
25 x front 2.5-inch SAS/SATA HDDs or SSDs and 2 or 3 x rear 2.5-inch SAS/SATA HDDs or SSDs
Built-in flash memory:
Two Mini-SSDs (SATA DOMs)
Two SD cards

RAID Support

RAID 0, 1, 10, 5, 50, 6, or 60

Optional supercapacitor
RAID state migration, configuration memory, self-diagnosis, and web-based remote configuration

LOM Network Ports

Two GE electrical ports, supporting NC-SI, WOL, and PXE
Four GE electrical ports, supporting NC-SI, WOL, and PXE
Two 10 GE optical ports, supporting NC-SI and PXE
Two 10 GE electrical ports, supporting NC-SI, WOL, and PXE

PCIe Expansion

Up to 9 PCIe 3.0 slots

Fan Modules

Hot-swappable fan modules in N+1 redundancy mode

PSUs

2 hot-swappable PSUs in 1+1 redundancy mode

Management

Uses the Huawei Hi1710 management chip and independent ports, supports standard management interfaces, such as SNMP and IPMI, provides the GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring, all integrated in a touch LCD diagnosis panel
Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft SystemCenter, and Nagios

Operating Temperature

5ºC to 35ºC (41ºF to 95ºF)
When the RH2288H V3 operates at 45°C (113°F), the server does not support PCIe SSDs and GPU.
